Regarding paper, a question often asked by customers is, do you sell A4 paper?

It seems that the public’s understanding of paper products only stays in our commonly used printing paper, notebooks and other civilian products. But today we will introduce a kind of paper that you have never heard of with high probability – sulfur-free paper.

When we talk about the name of sulfur-free paper, if you have not touched it, you may be wondering a question. Is there any connection between sulfur and paper?

This is about the production of modern paper. In the papermaking process of modern paper, a very important inorganic substance is usually used – aluminum sulfate (another name for it is alum)

paper4

Paper mills add aluminum sulfate as a sizing agent in the papermaking process, giving the paper anti-wear, anti-water, anti-emulsion, anti-corrosion properties, and at the same time improving the smoothness of the paper and giving it water-based printing adaptability.

In this process, it is inevitable that the produced paper products will contain sulfur.

However, in some industrial high-end civil use scenarios, the sulfur content in paper needs to be controlled within a very low range.

Faced with this demand, paper mills kept trying to improve the production process formula of paper, and finally sulfur-free paper was born.

Papers used in different fields have their own differences, such as industrial paper and household paper.

Industrial paper such as printing paper, sulfur-free paper, oil-absorbing paper, wrapping paper, kraft paper, dustproof paper, etc., household paper such as books, napkins, newspapers, toilet paper, etc.

paper2

Then let us explain the difference between sulfur-free paper and our commonly used ordinary paper.

Sulfur-free paper

paper5

Sulfur-free paper is a special backing paper for PCB silver processing in circuit board manufacturers. The main rationale for using this type of paper is to avoid the chemical reaction of silver with sulfur in the air, causing it to turn yellow. And the use of sulfur-free paper can avoid the reaction between sulfur and silver, which may lead to some defects of pcb.

paper6

At the same time, sulfur-free paper also avoids the chemical reaction between the silver in the electroplating finished product and the sulfur in the air, resulting in the product turning yellow. Therefore, the product should be packaged with sulfur-free paper as soon as possible after the product is completed, and sulfur-free gloves should be worn when touching the product, and should not touch the electroplated surface.

paper7

Features of sulfur-free paper: sulfur-free paper is clean, dust-free, ROHS-compliant, does not contain sulfur (S), chlorine (CL), lead (Pb), cadmium (Cd), mercury (Hg), hexavalent chromium (CrVI), polybrominated biphenyls and polybrominated diphenyl ethers. It can be better applied to PCB circuit board electronics industry and hardware electroplating industry.

paper8

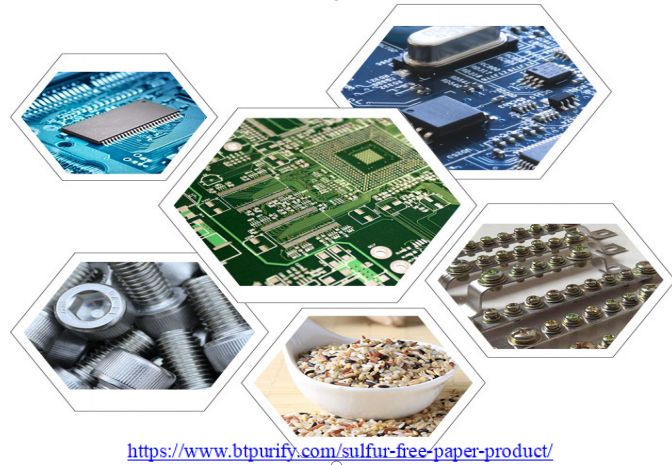

Sulfur-free paper application: mainly used for silver-plated packaging, such as circuit boards, LEDs, circuit boards, hardware terminals, food protection products, glass packaging, hardware packaging, stainless steel plate separation, food packaging, etc

paper1

Ordinary paper

The raw materials of paper making are mainly plant fibers. In addition to the three main components of cellulose, hemicellulose and lignin, there are other components with less content, such as resin and ash. In addition, there are auxiliary ingredients such as sodium sulfate. And ordinary paper is mainly made of plant fibers, such as wood, grass, etc. It is not suitable for electroplating paper due to too many impurities

paper9
paper10

Then finally let’s see what industrial uses are there for sulfur-free paper:

1. To achieve a masking effect on various products, when the surface needs deep processing such as spraying and acid etching, it can cover the surface that does not need spraying and acid etching. When spraying in various colors, The shading effect is even more important.

2. Use sulfur-free paper for shielding or packaging. The products of sulfur-free paper protective film are widely used, and are suitable for surface protection of plates, profiles, aluminum materials and PCB circuit boards. It is suitable for use in various clean rooms, large and small electronic factories and circuit board PCB factories, LCD factories, precision assembly projects, semiconductor factories, optical disc factories, laboratories, etc.

The industrial use of sulfur-free paper is so extensive that as a protective liner for various products, sulfur-free paper is indeed the best choice. In addition, sulfur-free paper is also a kind of paper type that is relatively inexpensive and environmentally friendly, and can be reused to save material costs.

ShenZhen Beite could supply the sulfur-free paper with customized service.
The parameters of the product are as follows:
Weight: 40gsm–120gsm,
Orthogonality value: 787*1092mm,
Generous value: 898*1194mm,
sulfur dioxide ≤50ppm,
Adhesive tape test: the surface has no hair falling phenomenon.
customized size.

If you want to know more about our company’s products, you can go to our official website https://www.btpurify.com/ to learn more.

paper11
